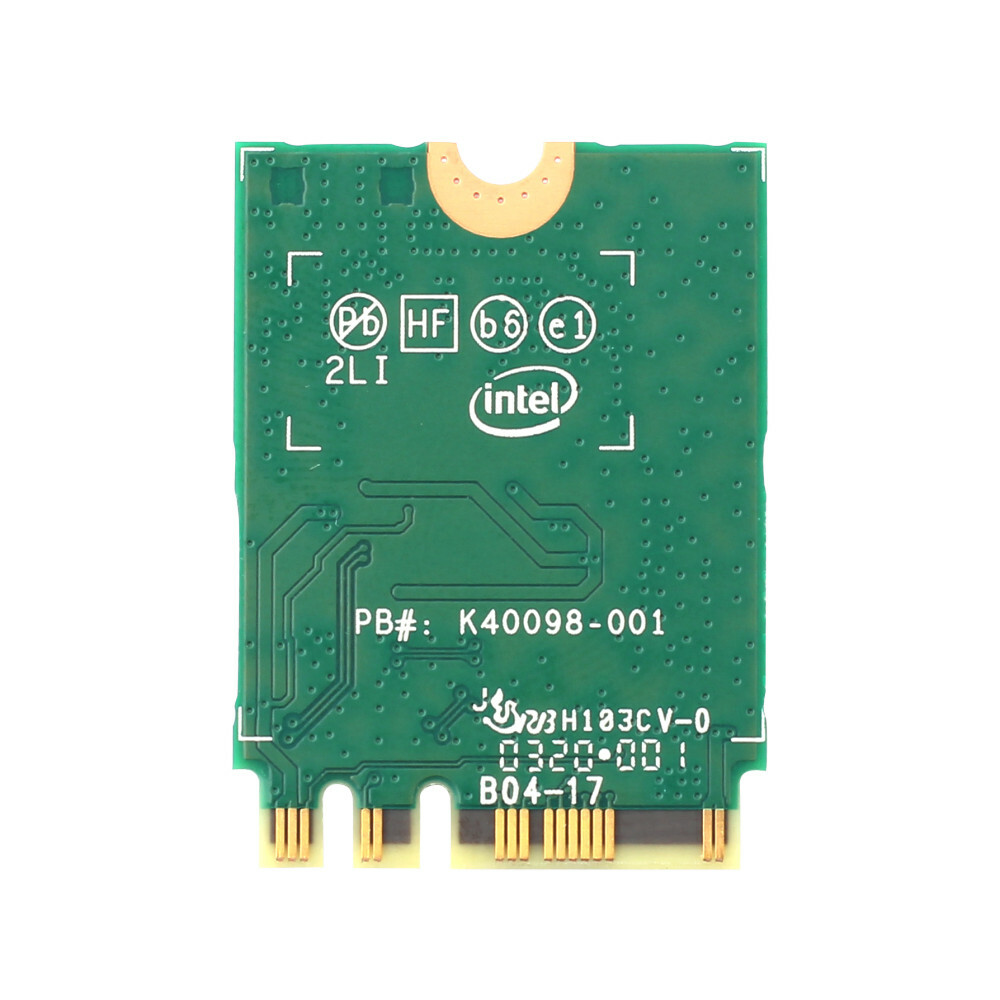

Wifi 6 Intel AX200 NGFF M.2 Dual Band BT 5.2 Wireless Network Card with Antennas
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| California Prop 65 Warning | Does not apply |
| MPN | Does not apply |
| Unit Type | Unit |
| Internal Interfaces | NGFF |
| Standards | IEEE802.11AX |
| Compatible Product Line | Universal |
| Compatible Port | M.2 |
| Model | AX200 |
| Supports | windows 10/11 64bit |
| Compatible Brand | Universal |
| External Interfaces | Ethernet/ Network Cards |
| Number Of Ports | 1 Port |
| Form Factor | NGFF |
| Maximum Data Rate | 2400 |
| Brand | Intel |
| Max. Downstream Data Rate | 2.4Gbps |
| Type | Wireless |

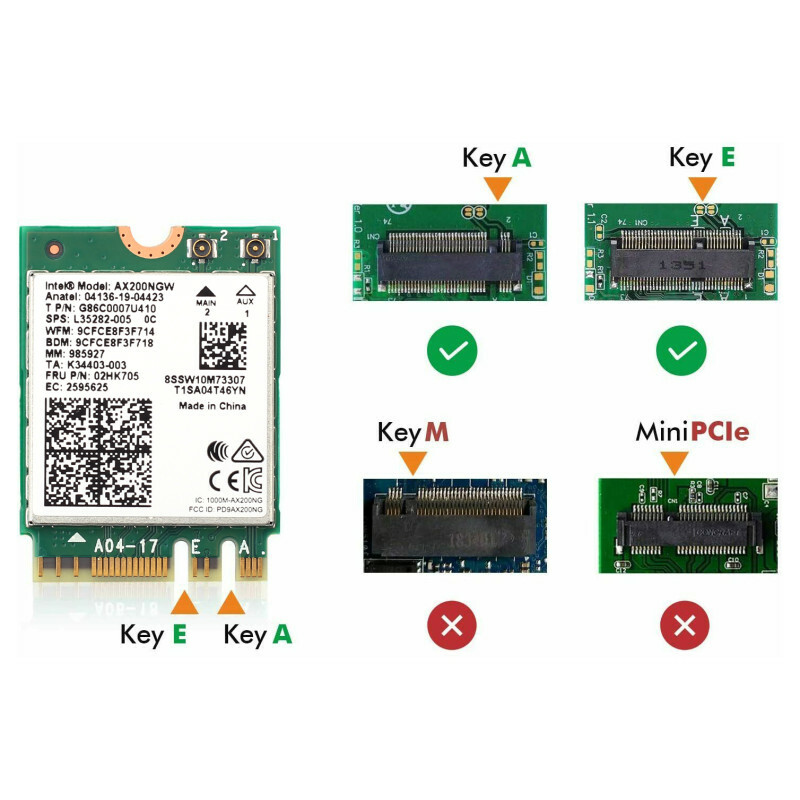

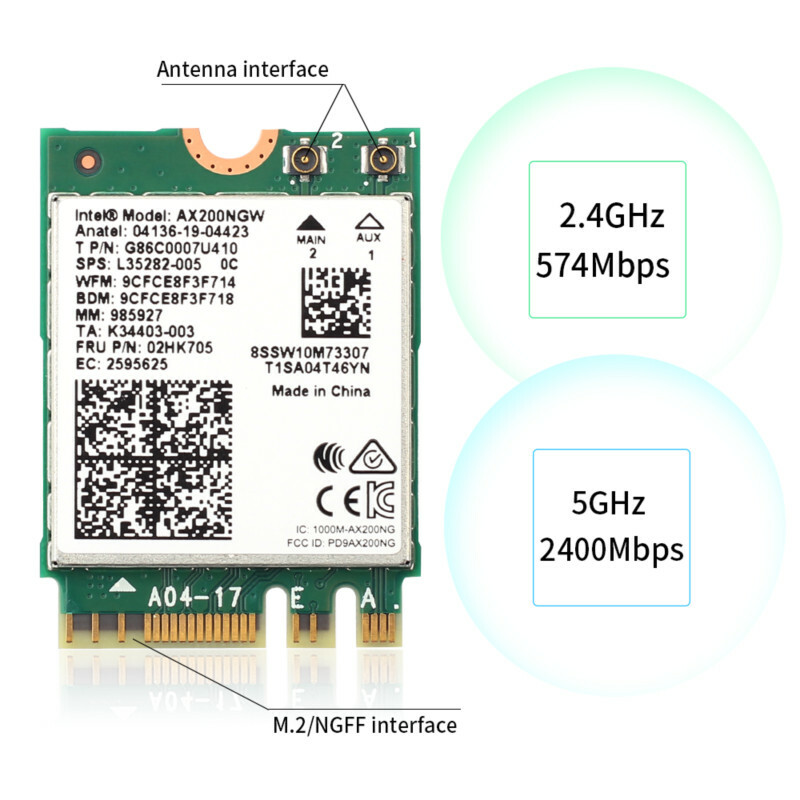

Wifi 6 Wireless card AX200NGW NGFF M.2 Wlan Bluetooth 5.2 Wifi Card with Antenna Model: AX200NGW Dual band: 2.4Ghz / 5Ghz(160Mhz) Standard: IEEE 802.11ac, 802.11ax Bluetooth:Bluetooth 5.2 Support MU-MIMO Operating System: Windows 10/1 64bit, Linux Interface: NGFF(M.2) Size:22*30MM The module supports MU-MIMO, 2x2 TX/RX channels and Bluetooth 5.2 The AX200 M.2 2230 form factor,supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both). Compatible With: It can used on Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc; Not support IBM/Thinkpad/lenovo/hp laptop. Package Include: 1* WiFi 6 AX200NGW NGFF Wireless card 1 x Plastic Clip 2 x 6DBi antennas 2 x U.FL IPEX IPX I-PEX MHF4 to RP-SMA cable(about 20cm) Screws Wifi 6 Intel AX200 NGFF M.2 Wifi Card BT 5.2 Wireless Network Card with Antennas Features: The Wi-Fi 6 AX200 supports 802.11ax via 2x2 MU-MIMO antennas over the 2.4 GHz and 5 GHz bands. Wi-Fi 6 AX200 also supports Bluetooth 5.2 The maximum throughput supported by the Wi-Fi 6 AX200 is a speedy 2.4 Gbps（160Mhz）, The Wi-Fi 6 AX200NGW can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go. Description: Model: AX200NGW Dual band: 2.4Ghz / 5Ghz(160Mhz) Standard: IEEE 802.11ac, 802.11ax 802.11ac:Speed up to 1730Mbps (The router must on 160Mhz), Bluetooth:Bluetooth 5.2 Support MU-MIMO Operating System: Windows 10/11 64bit, Linux Interface: NGFF(M.2) Size:22*30MM The module supports MU-MIMO, 2x2 TX/RX channels and Bluetooth 5.2 The Wi-Fi 6 AX200 M.2 2230 form factor,supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both). Compatible With: It can used on Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc; Not support IBM/Thinkpad/lenovo/hp laptop. Package Include: 1 x Intel AX200ngw wifi card 1 x Plastic Clip 2 x 6DBi antennas 2 x U.FL IPEX IPX I-PEX MHF4 to RP-SMA cable(about 20cm) Screws 1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0
