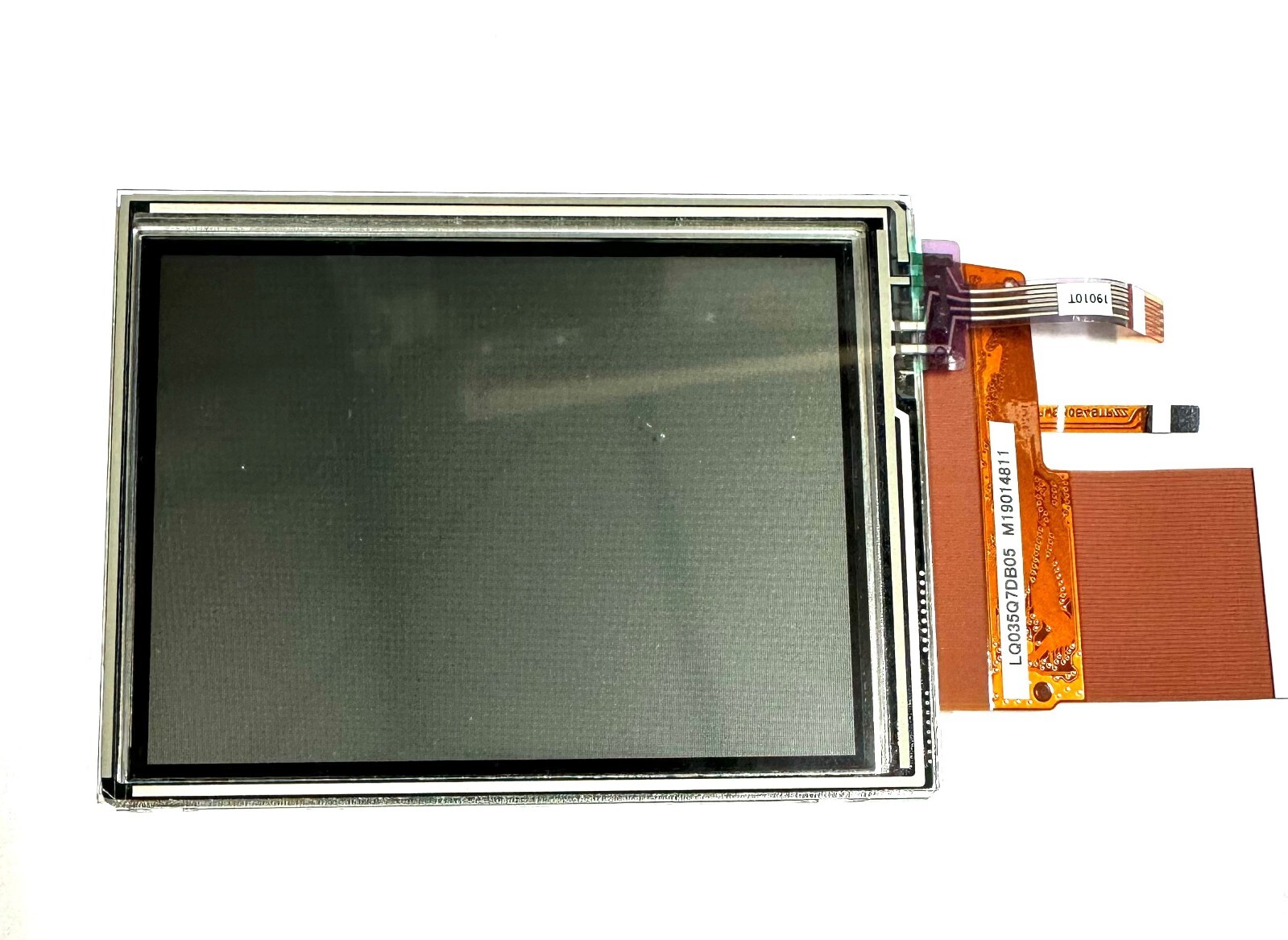

LQ035Q7DB05 Sharp 3.5” Touch TFT LCD Screen Display Panel WITH TOUCH PANEL
USD 22.25 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Sharp |
| MPN | LQ035Q7DB05 |
LQ035Q7DB05 Sharp 3.5'' Touch TFT LCD Screen Display With Touch PanelLQ035Q7DB05 Panel Model LQ035Q7DB05 Panel Brand SHARP Descrition a-Si TFT-LCD ,3.5 inch, 240×320 Panel Type a-Si TFT-LCD Display Mode TN, Normally White, Transflective Active Area 53.64×71.52 mm Outline 65×85×3.7 mm Surface Hard coating (3H) Contrast Ratio 85:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) Display Colors 262K (6-bit) Response Time 30/50 (Typ.)(Tr/Td) Viewing Angle 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) Frequency 60Hz Lamp Type 6S1P WLED Without Driver Signal Interface Parallel RGB (1 ch, 6-bit) , 50 pins Input Voltage 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
Related Items
2 Pack -DDR3 RAM4GB | PC3-12800 1600MHz | Used – Functional – Returns accepted
5400Mbps Desktop PCIe 6G/5G/2.4G WiFi Wireless Network Card Bluetooth Adapter
LP156WFG(SP)(K1) 144Hz 40pins LP156WFG-SPK1 LCD Screen FHD 1920×1080 Matte
OEM Connect Charging Port Dock Flex Cable For Microsoft Surface Laptop 3 13.5 15
AMD Wraith Spire Heatsink/Fan AM4 cpu cooler 712-000055 REV:F
144Hz FHD IPS 40pins for ASUS ROG Strix G15 G512 G512L G512LI LCD Screen FHD
TL140BDXP01-00 TL140BDXP01 00 Panel Matrix 2560*1440 EDP 40 Pins LCD Screen

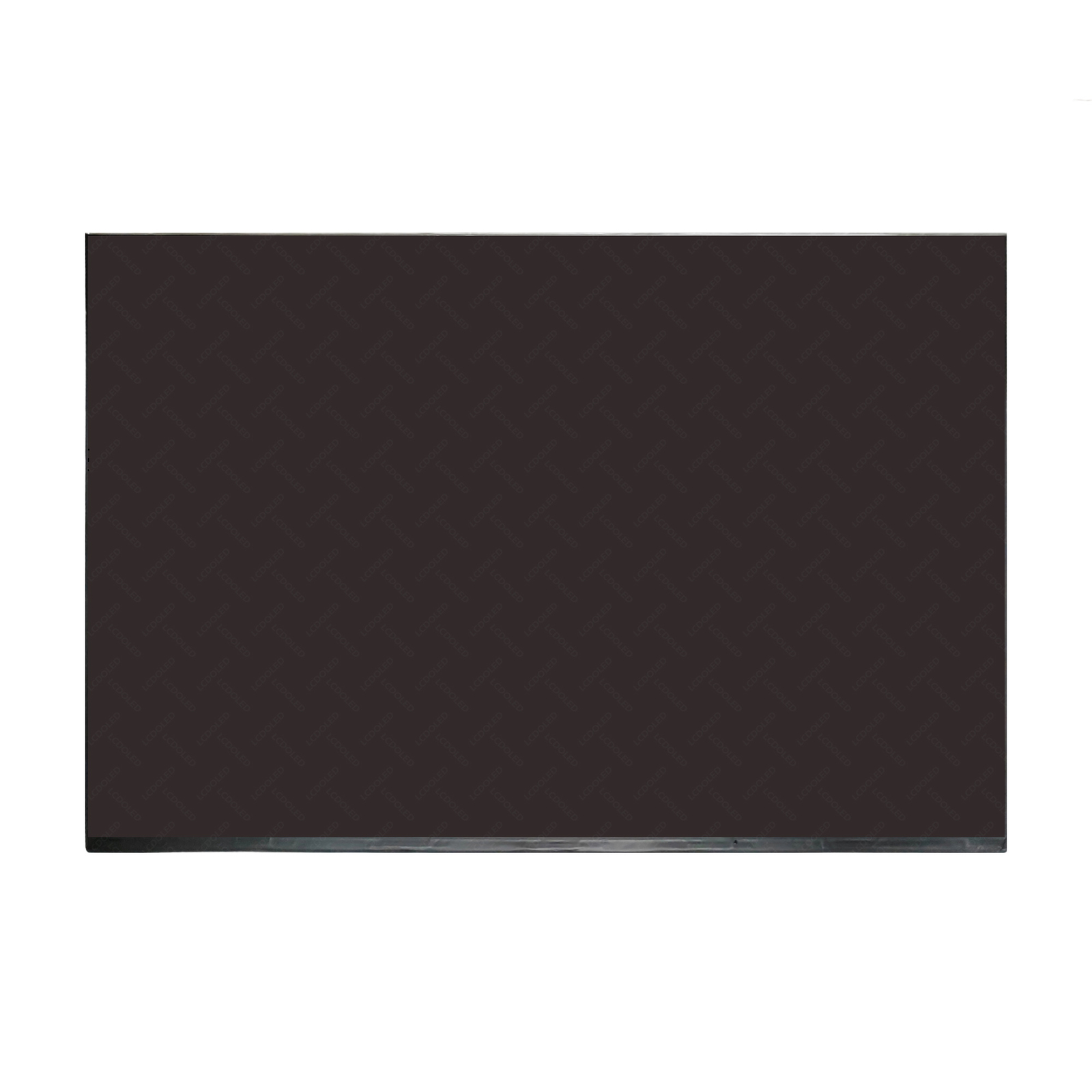

17″ 16:10 240Hz WQXGA 2560×1600 LED LCD Screen IPS Display for MSI Raider GE78HX
